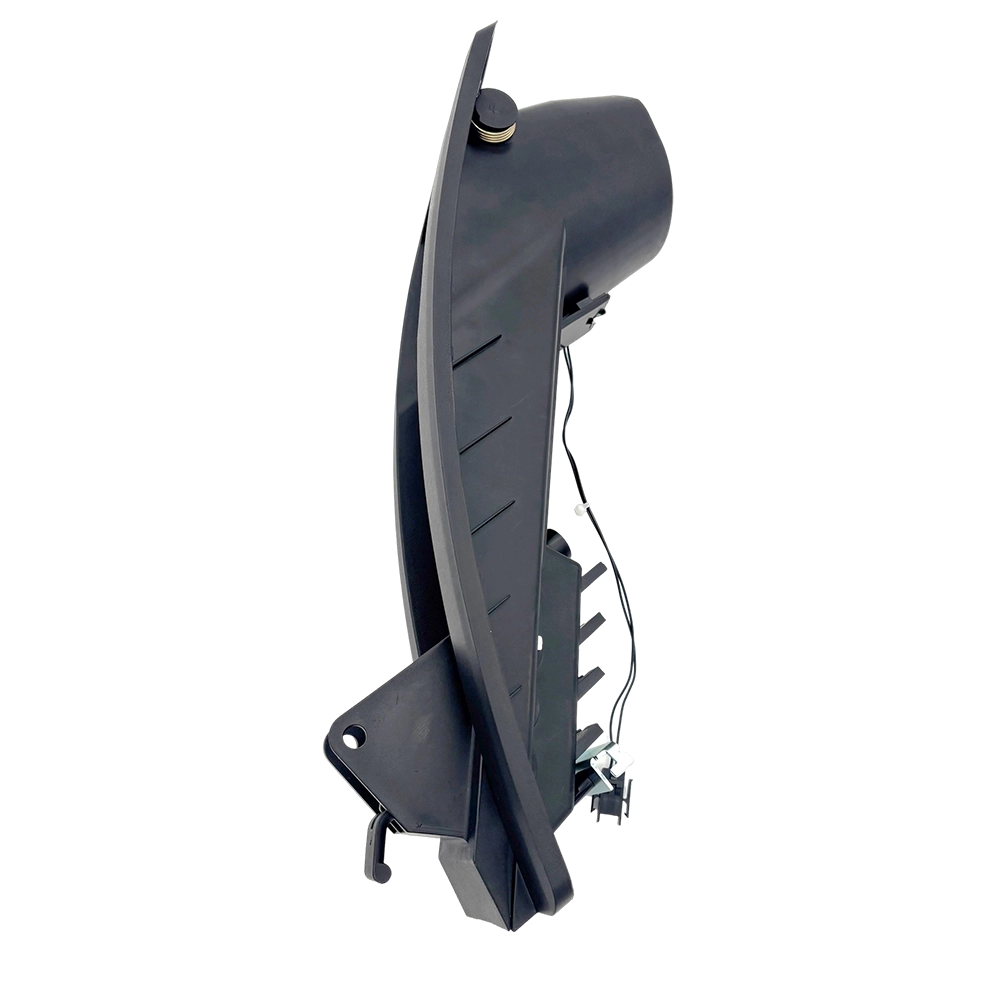

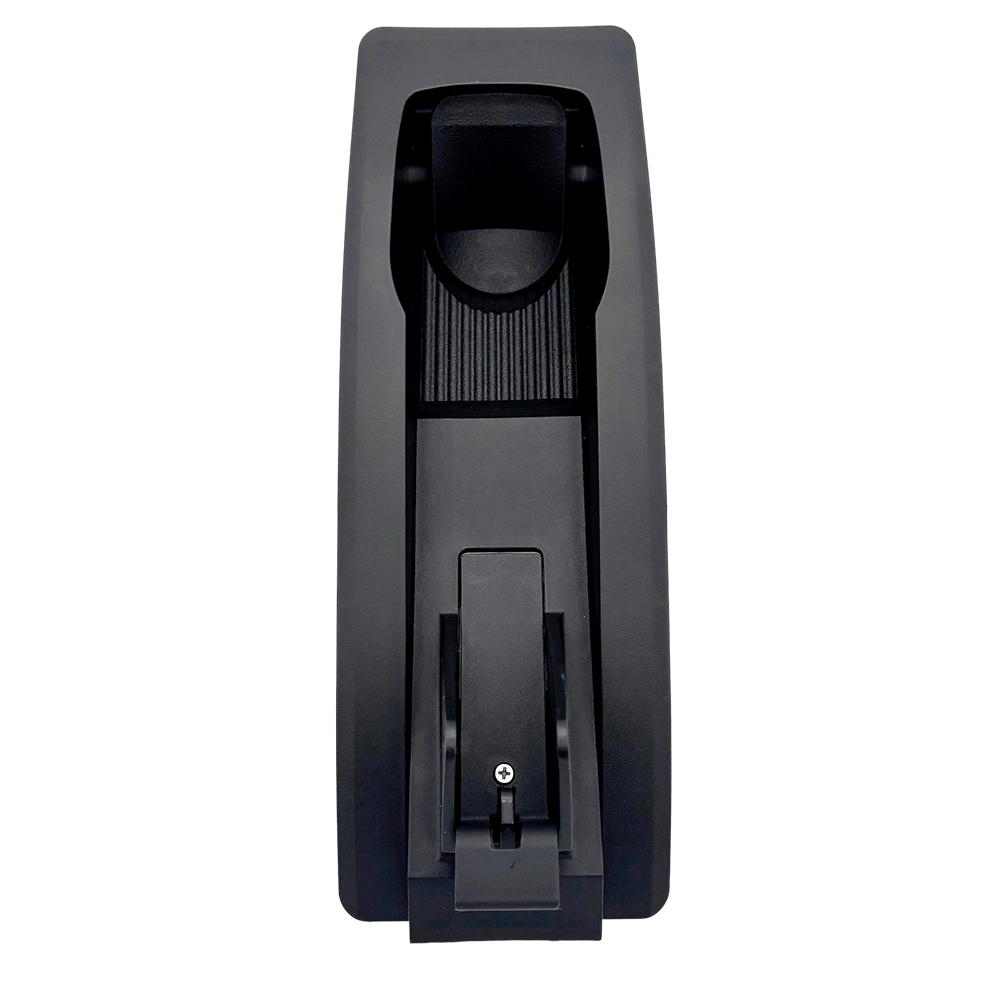

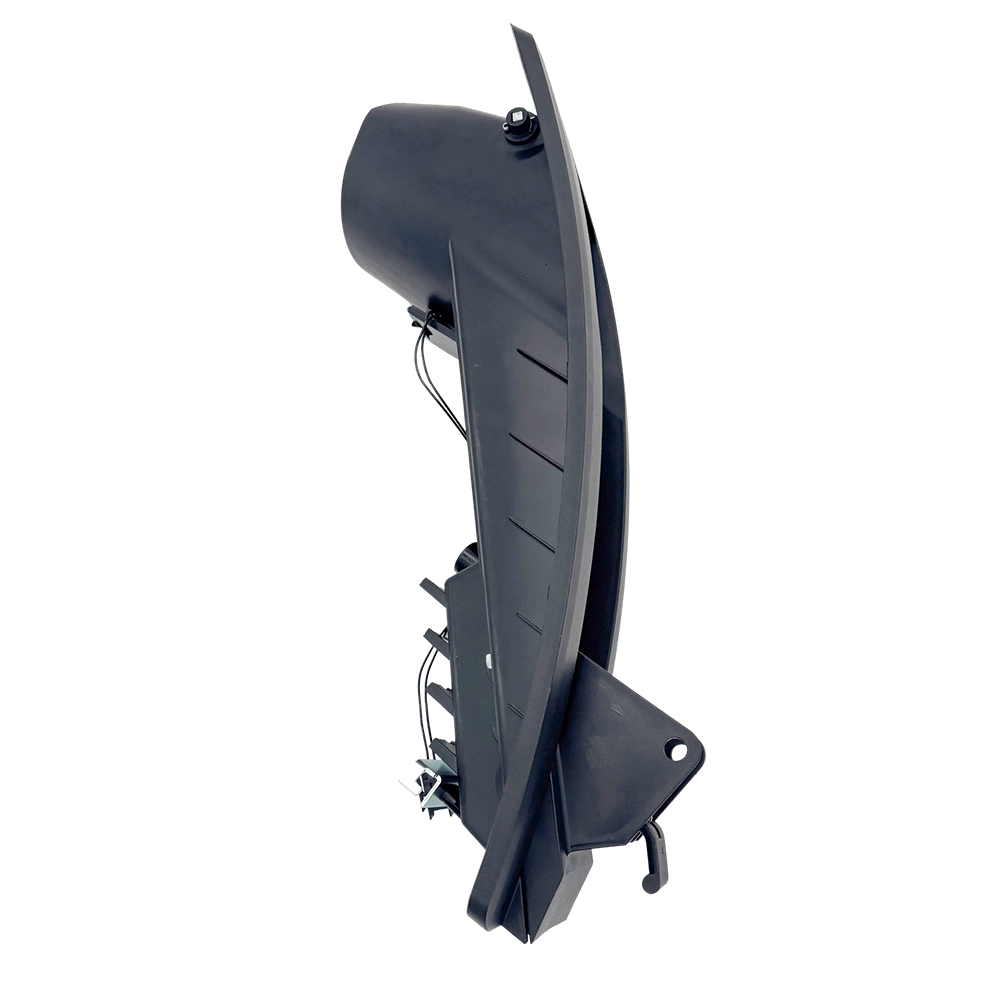

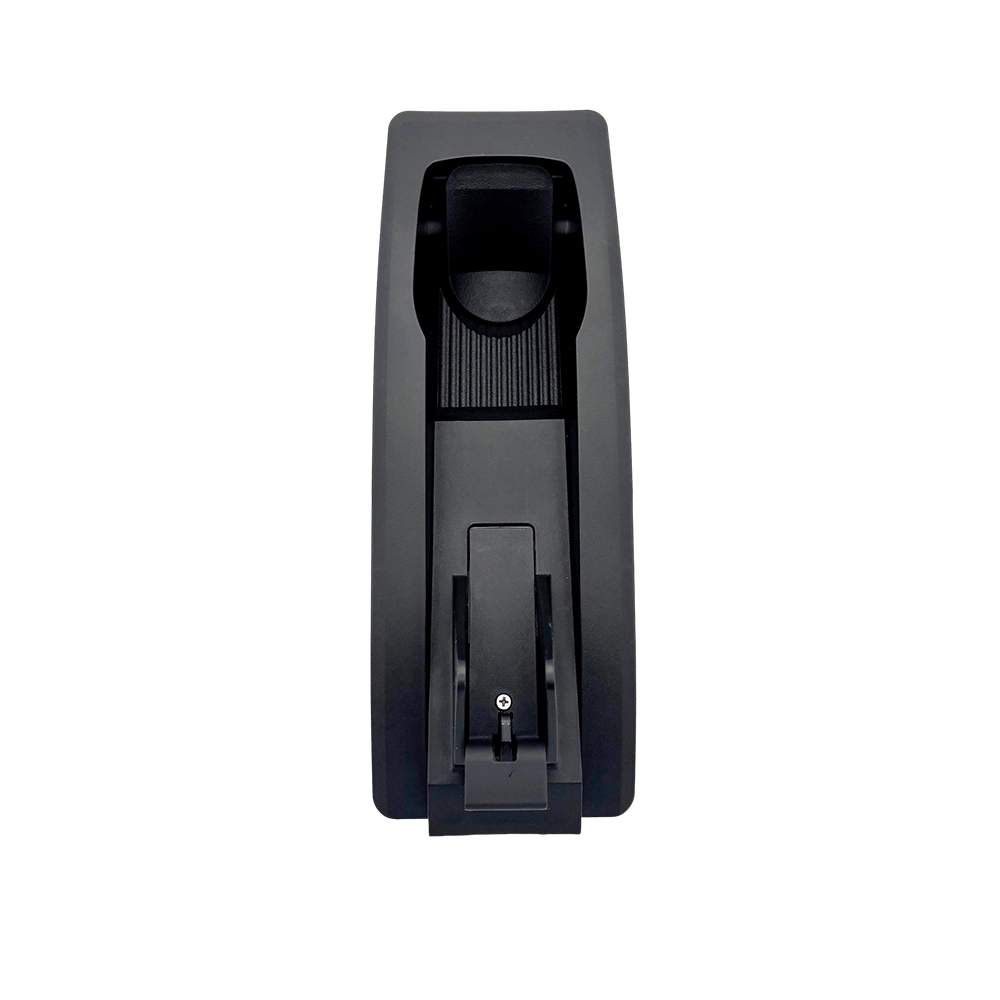

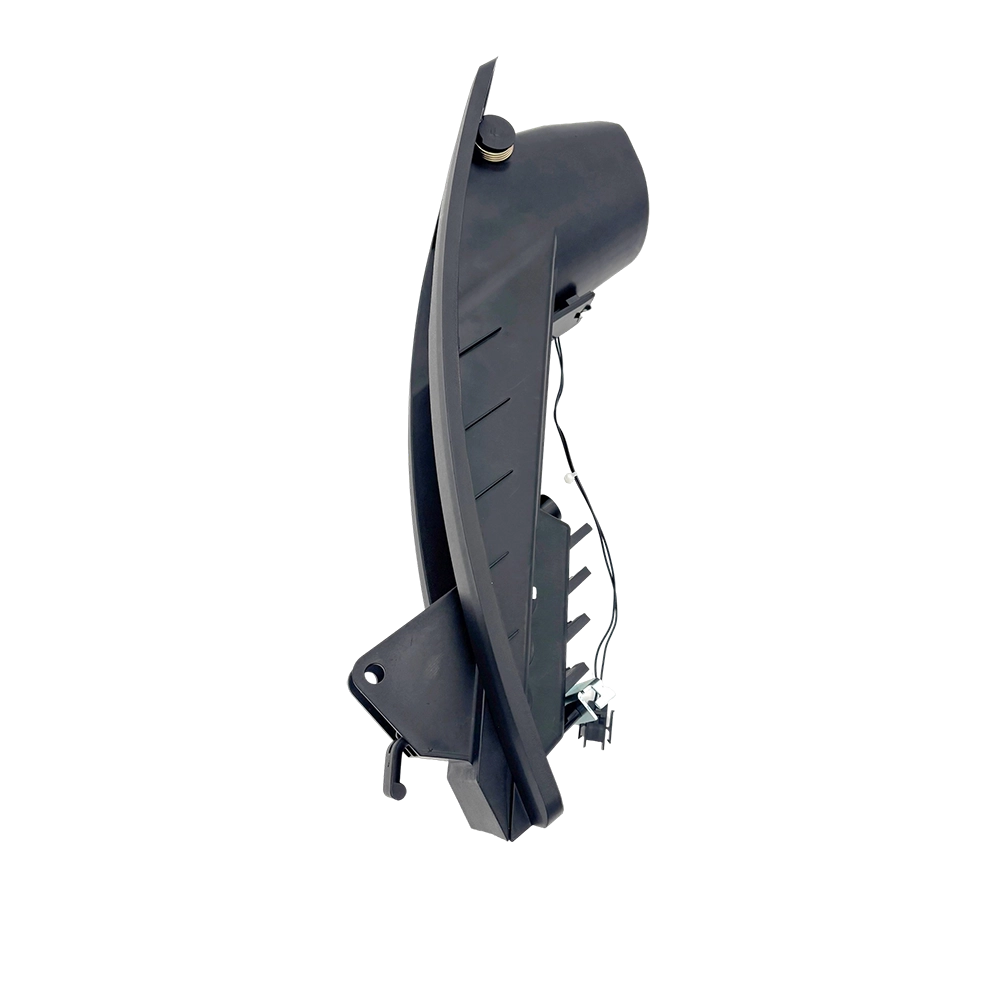

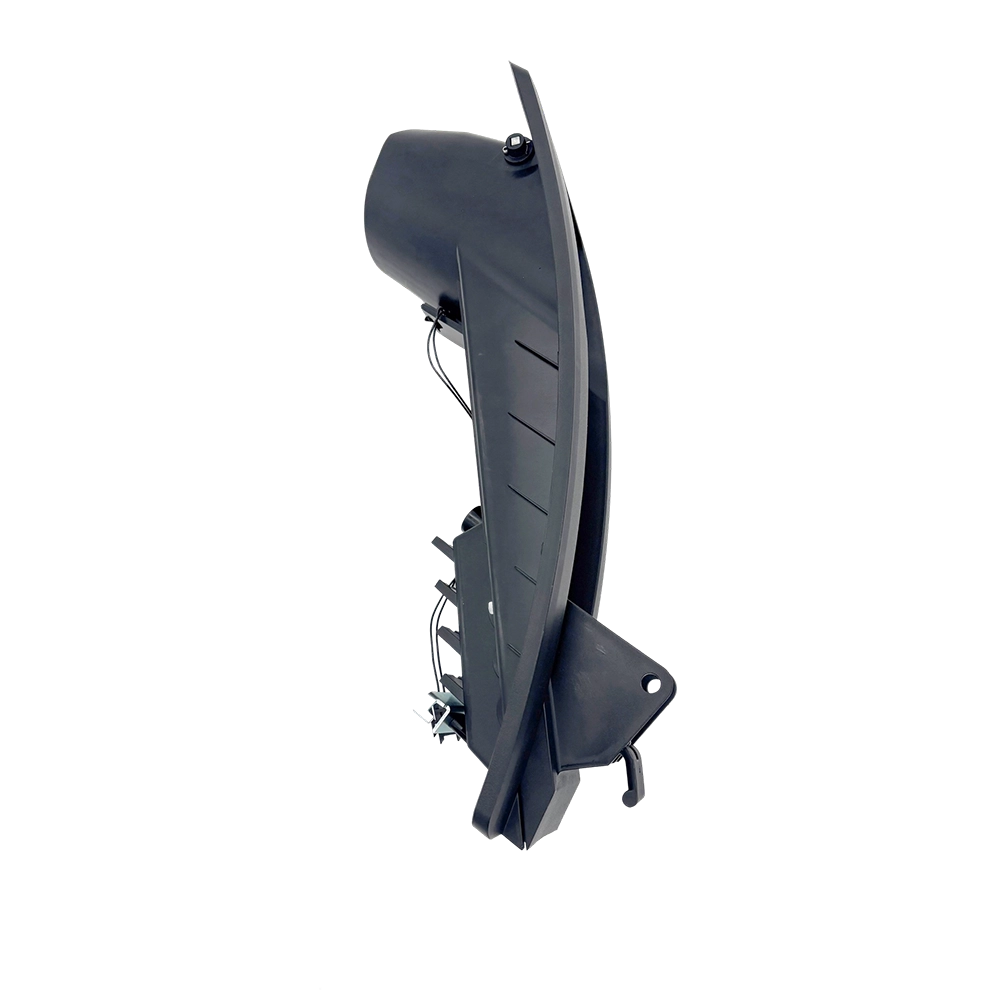

Freedom Engineered Nozzle Boot, PTS, without Collar for Ovation, Ovation 2
The Freedom Engineered FE-WU003091-0002 Nozzle Boot is a direct replacement for Wayne OEM nozzle boots WU003091-0002 and WU003091-0003. Engineered to correct the common failure points found in the original OEM design used on Wayne® Ovation®, Ovation2®, and Anthem® dispensers, it delivers improved durability, more reliable nozzle detection, and fewer service calls.
Stop replacing failed nozzle boots with the same flawed OEM design.
| Quantity | Discount | Discounted price |
| 5 + | $10.00 | $120.00 |
Quick Links
Specifications
| OEM DESIGN | FREEDOM’S SOLUTION | |||
|---|---|---|---|---|
| Problem | OEM Design Flaw | Resulting Issue | Impact | |
| Problem #1 | The plastic hinge pin bends under load. | Allows the flapper to over-rotate, causing switch misalignment. | Nozzle boot doesn’t work. | Use sturdy aluminum shaft. |
| Problem #2 | The tapered hinge pin causes side-to-side movement and flapper binding. | Reed switch misalignment, so no nozzle detection. | Nozzle boot doesn’t work. | Use aluminum hinge pin, with no taper and larger bushings. |
| Problem #3 | The round shaft provides limited engagement. | Accelerated wear allows the flapper to over-rotate. | Nozzle boot doesn’t work. | Use aluminum hinge pin, with square shaft. |
The nozzle boot is one of the hardest-working components on every fuel dispenser, yet it is often one of the most common sources of dispenser downtime. The OEM nozzle boot used on Wayne Ovation, Ovation2, and Anthem dispensers is prone to wear, binding, and misalignment, leading to flapper sticking, inaccurate nozzle detection, unnecessary service calls, and frustrated customers.
Many technicians attempt temporary repairs by installing screws or other field modifications to limit flap travel. While these fixes may restore operation for a short time, they fail to address the underlying design flaws and can leave dispensers looking poorly maintained.
Freedom Electronics engineered a better nozzle boot. The Freedom Engineered FE-WU003091-0002 is a direct replacement for OEM-equivalent part numbers WU003091-0002 and WU003091-0003, specifically redesigned to eliminate the common failure points found in the original OEM design.
Compatibility
- Wayne Ovation fuel dispensers
- Wayne Ovation2 fuel dispensers
- Wayne Anthem fuel dispensers
- Direct replacement for OEM-equivalent part numbers WU003091-0002 and WU003091-0003
Simple Plug-and-Play Installation

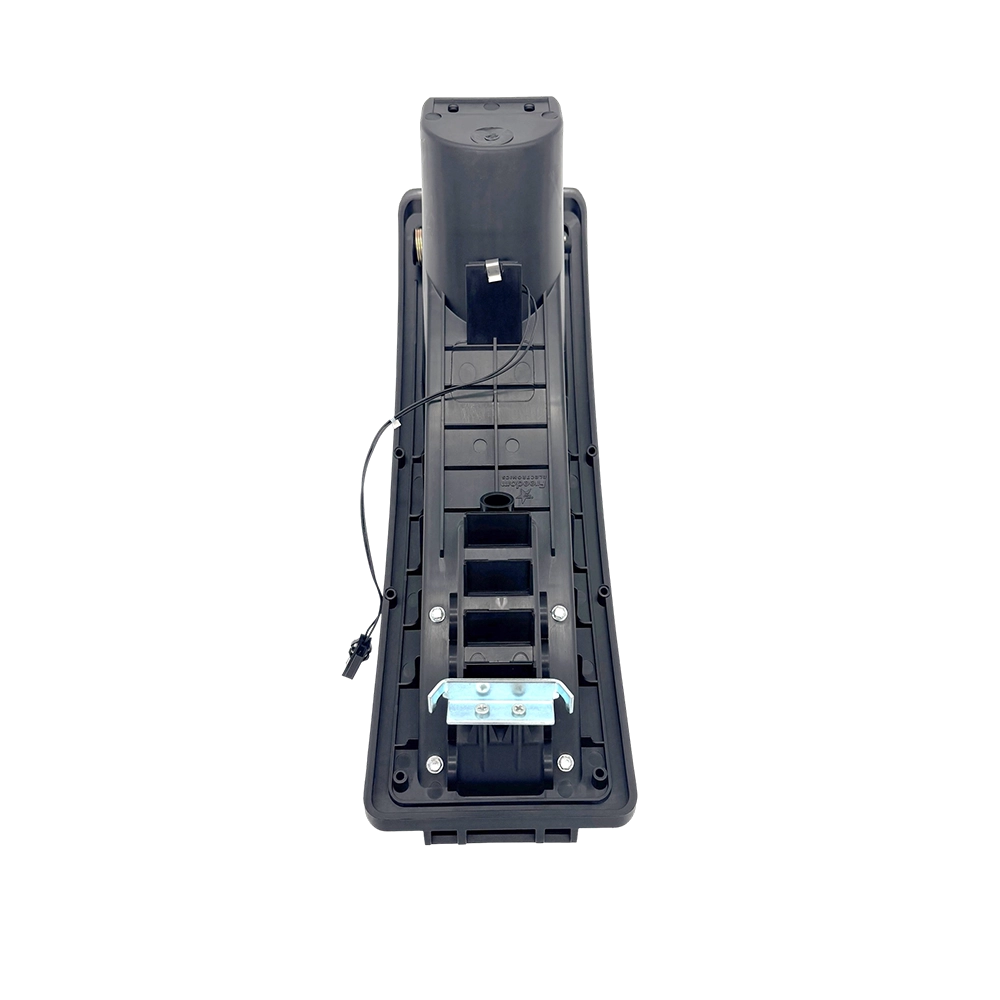

Every Freedom Engineered nozzle boot ships fully assembled with the reed switch already installed and includes the required mounting bracket for supported applications. Simply remove the existing assembly and install the new nozzle boot—no modifications, adjustments, or additional assembly required.
The Three OEM Design Problems—Solved

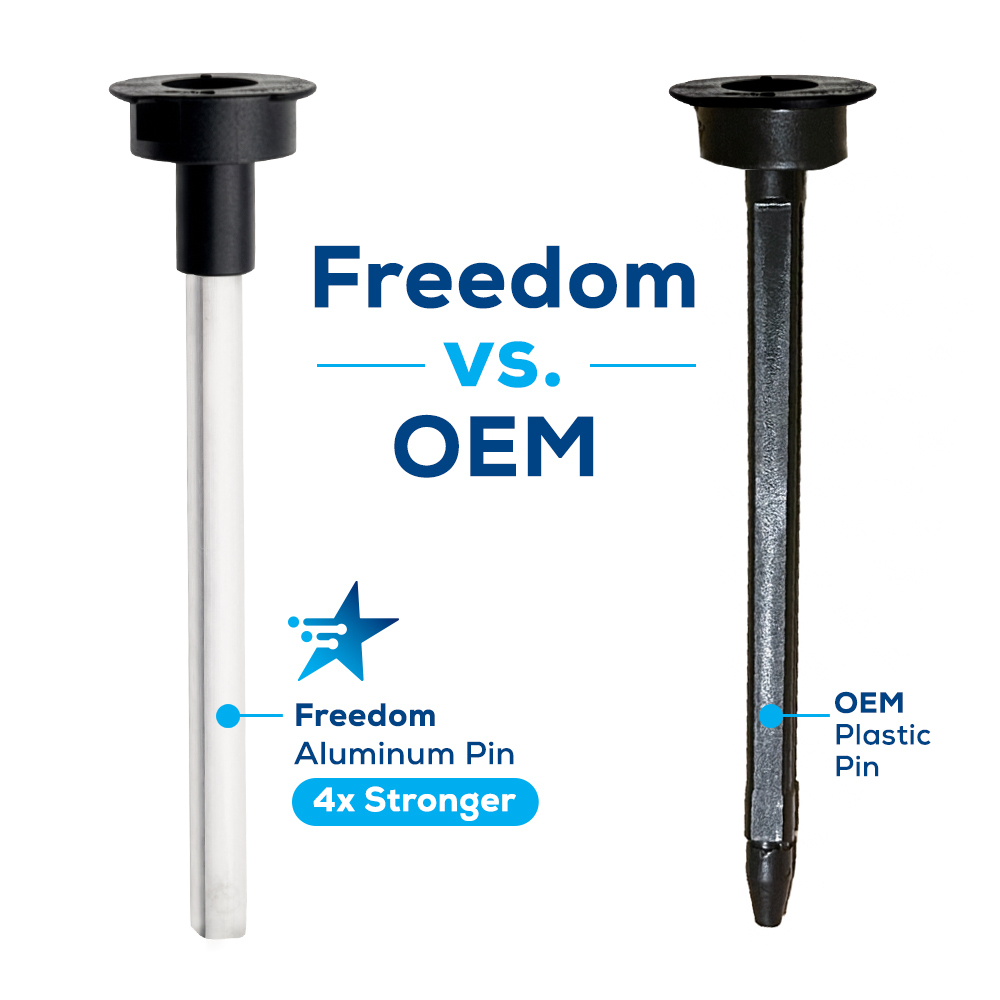

Problem #1: Plastic Hinge Pin Allows Flapper Over-Rotation
The OEM hinge pin is manufactured from plastic and can bend under load. Its rounded profile and limited engagement allow the flapper to rotate beyond its intended travel, leading many technicians to install screws as makeshift positive stops.
Freedom’s Solution
- Precision aluminum hinge pin for superior strength
- Resisted 10 pounds of force during deformation testing
- OEM hinge pin bent at only 2.5 pounds
- Four times greater resistance to deformation than the OEM design
- Prevents excessive flapper movement and premature wear
Problem #2: Tapered Pin Causes Binding and Reed Switch Misalignment
The OEM tapered hinge pin allows the flapper to shift from side to side. As wear increases, the flap begins to bind, overextend, and move away from the reed switch. Once the magnet is no longer properly aligned, the dispenser may fail to recognize when the nozzle has been returned.
Freedom’s Solution
- Straight square hinge pin eliminates side-to-side movement
- Larger bushings securely support the flapper
- Built-in positive stop prevents over-travel
- The flapper stops against the nozzle boot body instead of a small molded rib
- Keeps the magnet and reed switch properly aligned
- Eliminates the need for field modifications

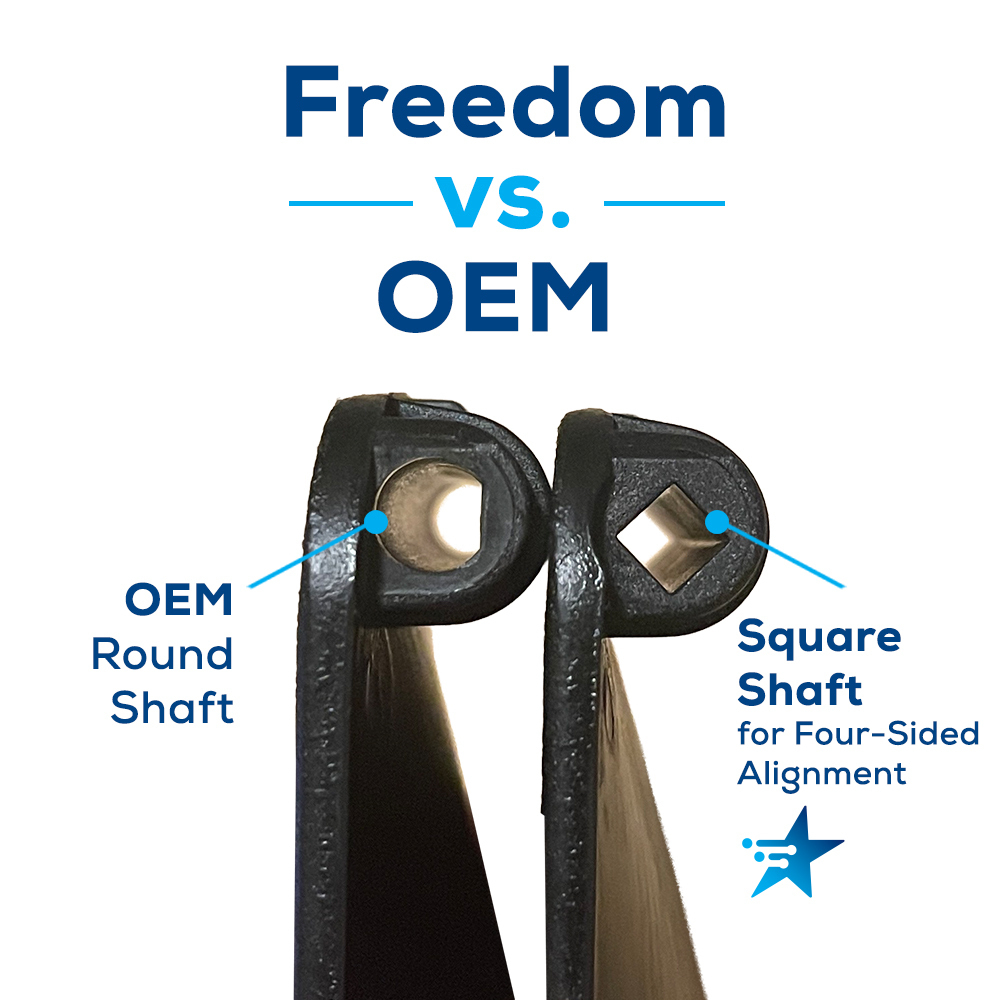

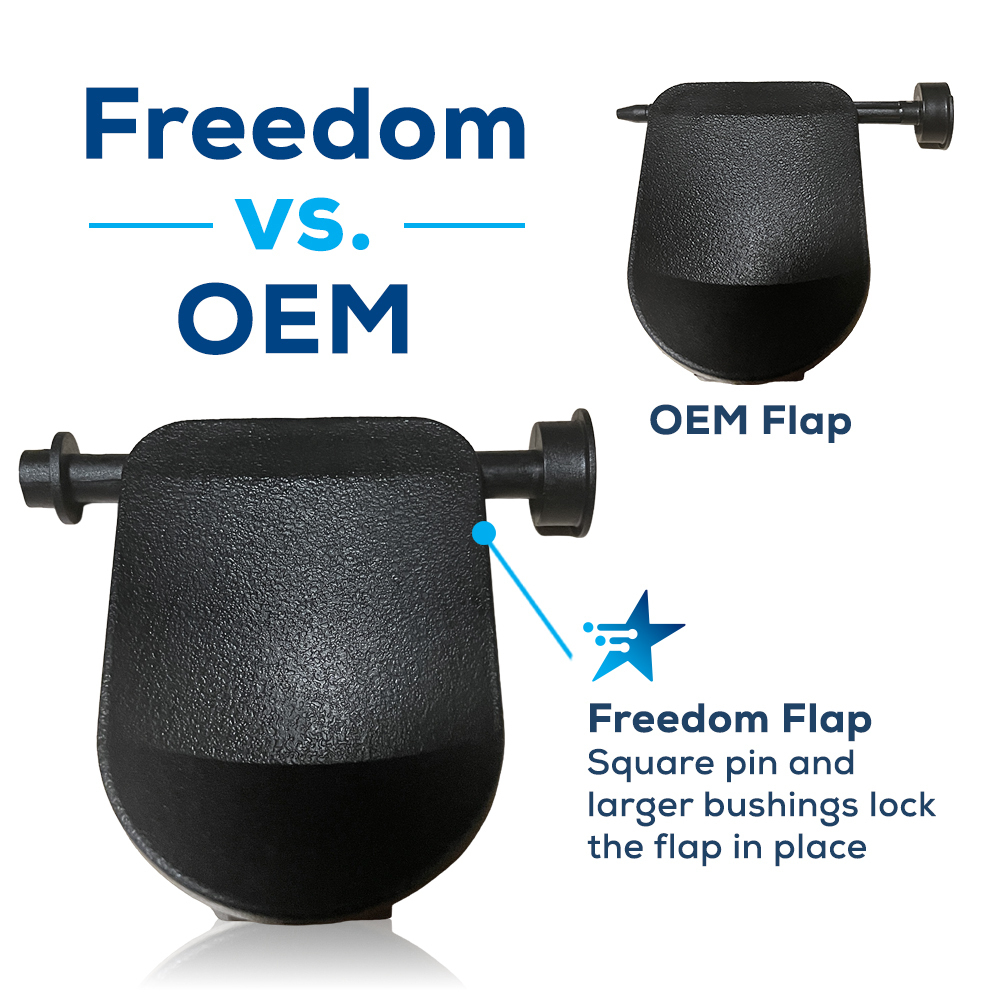

Problem #3: Round Shaft Allows Flapper Rotation
The OEM round shaft provides limited engagement with the flapper, allowing it to rotate as the assembly wears. This movement contributes to premature failure and inconsistent nozzle detection.
Freedom’s Solution
- Square shaft provides full four-sided engagement
- Approximately four times more contact area than the OEM design
- Securely locks the flapper in position
- Eliminates unwanted rotation for improved long-term reliability
Engineered Benefits
- Freedom Engineered upgrade—not simply another OEM replacement
- Direct replacement for WU003091-0002 and WU003091-0003
- Compatible with Wayne Ovation, Ovation2, and Anthem dispensers
- Ships fully assembled with the reed switch installed
- Mounting bracket included
- True plug-and-play installation
- Reduces sticking nozzle boots and nuisance service calls
- Maintains accurate nozzle detection
- Improves dispenser appearance
- Backed by a 365-day warranty
See the Engineering Difference
The Freedom Engineered nozzle boot isn’t just another replacement—it corrects the design flaws responsible for many common nozzle boot failures.
About Freedom Electronics
Freedom Electronics develops Freedom Engineered products to solve known OEM failure points. Instead of simply reproducing original components, our engineering team redesigns critical parts to improve durability, simplify installation, reduce maintenance costs, and increase equipment reliability in the field.
Frequently Asked Questions
This nozzle boot is a direct replacement for OEM-equivalent part numbers WU003091-0002 and WU003091-0003.
It is a Freedom Engineered upgrade that maintains direct replacement compatibility while correcting several common weaknesses found in the OEM design.
Yes. Every unit ships fully assembled with the reed switch installed and includes the required mounting bracket.
Wayne Ovation, Ovation2, and Anthem fuel dispensers.
Every Freedom Engineered nozzle boot is backed by a 365-day warranty.
Why Upgrade?
Stop replacing failed nozzle boots with the same flawed OEM design. Upgrade to the Freedom Engineered nozzle boot to eliminate common failure points, reduce maintenance costs, improve dispenser appearance, and deliver a better fueling experience.
Fix the Flaws. Upgrade the Boot.
No. This is a Freedom Engineered upgrade designed to correct the weaknesses found in the original OEM nozzle boot while maintaining direct replacement compatibility.
Yes. Every unit ships fully assembled with the reed switch installed and includes the required mounting bracket.
Wayne® Ovation®, Ovation2®, and Anthem® fuel dispensers.
Every Freedom Engineered nozzle boot is backed by a 365-day warranty.
Why Choose Freedom?
Don’t replace another failed nozzle boot with the same design that caused the problem. Upgrade to the Freedom Engineered nozzle boot and eliminate the common failure points that lead to sticking flappers, misaligned reed switches, nuisance service calls, and poor dispenser appearance.
Fix the Flaws. Upgrade the Boot.
